Ⅰ, biomass molding fuel boiler

A boiler that burns biomass molding fuel to heat working medium.
Biomass molding fuel is the use of woody, herbaceous plants (such as straw, rice bran, wood chips, bark, peanut shell, hemp stalk, etc.) and their waste materials as raw materials, with mechanical methods (such as cutting, crushing), dense molding technology, processing into a shape and size, bulk density, conducive to transportation and combustion of molding fuel. It can replace coal, oil and natural gas, achieve energy saving and emission reduction, and greatly reduce production costs compared with oil or gas boilers.
Biomass fuel is a renewable clean fuel, the development of biomass energy instead of oil, coal and other traditional energy, reduce fossil fuel consumption, reduce CO², not only can protect the environment, but also promote the sustainable development of agriculture and forestry, with good ecological and social benefits.

Ⅱ, biomass fuel composition

(1) Agricultural biomass molding fuel
Corn stalk, wheat stalk, straw, bean stalk, sorghum stalk, cotton stalk and other crop straw produced in the process of agricultural production

(2) Agricultural product processing industry leftovers
Residues such as rice husks, corn cobs, peanut husks and other residues produced in the processing of agricultural products are agricultural mixtures and mixtures of various agricultural biomass

(3) Forest biomass fuel
Felling, timber building residues, wood processing residues, tree pruning and forestry mixtures

(4) Mixed biomass fuel
A mixture of agricultural and forestry biomass

Ⅲ, Characteristics of biomass fuel

1. Biomass molding fuel, with easy ignition, good fuel performance, high calorific value, no pollution, after combustion can meet GB13271 "boiler air pollutant emission standard" requirements.
2. Biomass molding fuel, with a significant ratio (1000-1270kg /m3), high calorific value (3800~4500Kcal/kg), volatile content ≥65.6%, combustion rate of more than 90%. Low cost, easy to use, clean and sanitary advantages, easy to store and transport.
3. Biomass molding fuel, a renewable and clean fuel, is a typical circular economy project.
4. Low-carbon energy CO2 zero emissions, biomass fuel is mainly volatile, its fixed carbon content is only 15% on the right, is a typical low-carbon fuel. The CO2 emitted by combustion is absorbed by plants for photosynthesis during the growth process to achieve zero CO2 emission.
5.Low nitrogen and sulfur content reduces sulfur dioxide (SO2) and NOx oxide emissions. The sulfur content of biomass is only 0.06%, which is lower than the sulfur content of light diesel, and it can be directly discharged without the need to set up a desulfurization device.

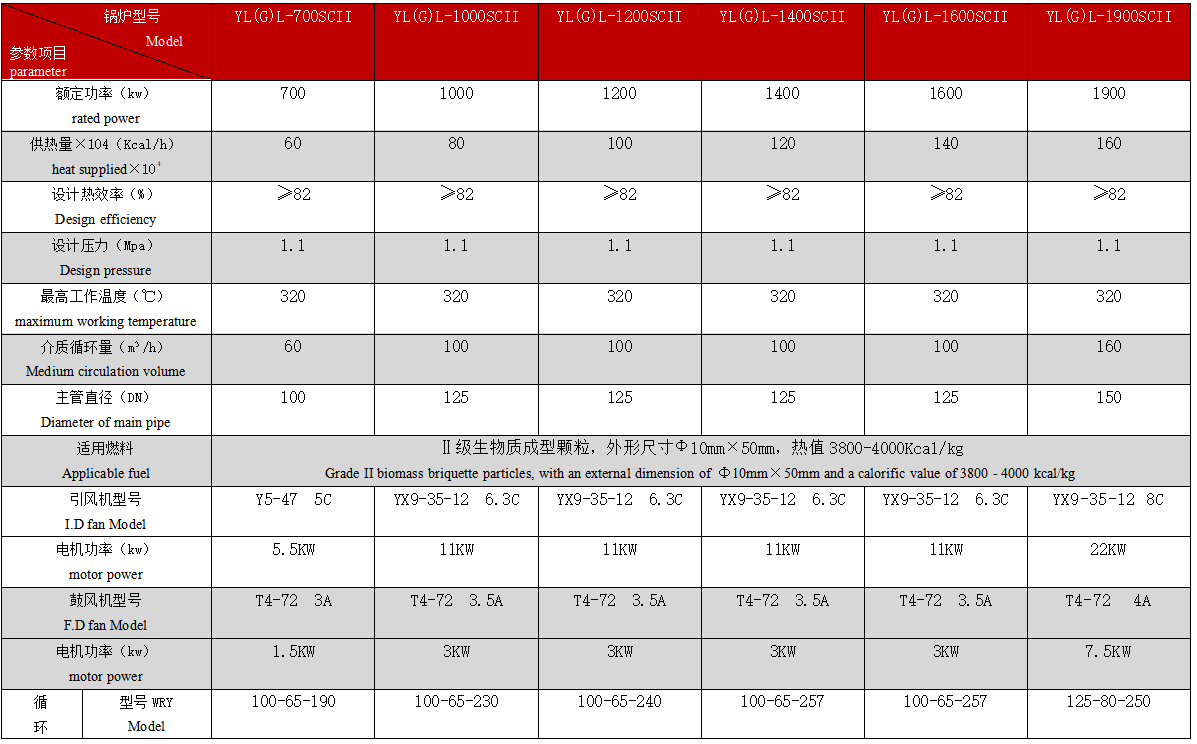

Ⅳ, Product range:

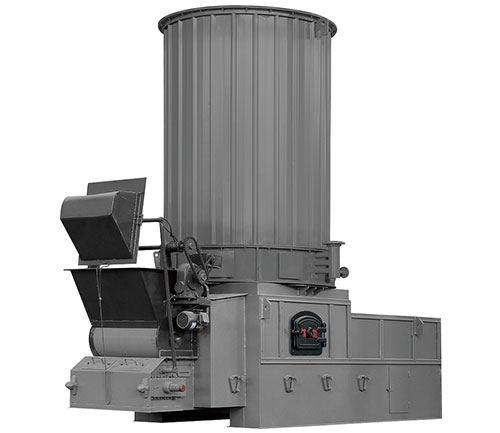

1, Product model: YL(G)L vertical Biomass-fired organic heat carrier boiler, where "G" means fixed grate or hand-fired furnace.
2, rated thermal power: 0.7MW -- 1.9MW(600,000 kcal -- 1.6 million kcal)
3. Working pressure: 0.6-1.1MPa
4, other: according to the user's various parameter requirements specially designed and manufactured, to provide products to meet customer needs, tailored.

Ⅴ, Structural characteristics

1.YLL/YGL series organic heat carrier furnace is an assembled forced circulation chain grate/fixed furnace boiler. The boiler consists of an upper body and a lower grate/fixed furnace, which is combined on site.
2. The heating surface of the boiler body adopts close-row circular coil, which is composed of two layers of close-row disc tubes inside and outside. The gap between coils is adapted to the fuel, reducing ash accumulation.
3. The boiler heating surface tube docking should be fully automatic gas protection welding process and equipment, which can be 100% real-time X-ray online detection, and the welding quality is stable and reliable.
4. The boiler is fully assembled, compact structure, small footprint and short installation cycle.
5. The feeding device has independent intellectual property rights and adopts a locking mechanism.
6. Compared with traditional coal-fired boilers, it has a larger furnace combustion space to adapt to the characteristics of high volatile content of biomass fuel.

Ⅵ, performance advantage

1. High efficiency and energy saving
(1) The boiler adopts the disc tube multi-return heat exchange structure, the heating surface is sufficient, and the output thermal efficiency is high.
(2) The tail is configured with air preheater, steam waste heat boiler and hot water energy-saving device for waste heat recovery according to the use of the user's waste heat, reduce the exhaust temperature, improve the boiler thermal efficiency and reduce fuel consumption.
(3) The grate arch is specially designed, the air chamber independently regulates the air setting, the coal combustion is uniform and sufficient, and the medium adaptability is wide.
(4) The boiler uses high-quality insulation materials and special construction technology, less heat loss, low smoke exhaust temperature, and high thermal efficiency of the boiler.
(5) Combining industrial automation control technology, Internet technology, computer software and artificial intelligence technology to establish an industrial boiler Internet of Things platform, which can realize remote human-computer interaction and data sharing, and realize dynamic control.

2, safe and reliable
(1) The body heating surface adopts close-row coil, and the heating surface is adequately arranged to effectively reduce the heat load on the surface of the pipe, and the use of thermal oil medium is safer.
(2) The medium process is reasonable, the heat transfer oil is from low (import) to high (export), the medium gas generated during operation is difficult to stay in the furnace, and it can be convenient to discharge the system.
(3) Boiler operation adopts remote and near-ground multi-point control, automatic control and monitoring instruments.
(4) The tail convective heat transfer section adopts a special anti-ash structure design and is equipped with a soot blowing device, which has no ash accumulation and high heat transfer efficiency.

3, Environmental protection according to the local plutonium protection requirements to configure appropriate flue gas treatment equipment, flue gas emissions to meet the environmental requirements.
