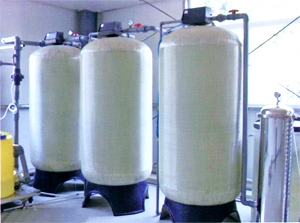

Automatic water softener

Product description

CHR series automatic water softener is to automatically control every step of the softener operation and regeneration, and use time, flow or other sensors to start regeneration. The basic composition of automatic water softener is: FLECK or Runxin multi-way control valve, resin tank (including 001*7 resin), salt box and pipeline system.

1. Technical parameters

Raw water hardness: 3-8mmol/L

Residual water hardness: ≤0.03mmol/L

Working pressure: 0.25-0.5Mpa

Operating temperature: 2-50℃

Tank pressure: ≤0.8Mpa

Automatic power supply: 220V 50HZ

Power consumption: 10W

Resin Model: 001×7 strong acid cation exchange resin

Installation requirements: The foundation should be level, and the water pipe should be set near the installation site.

A bypass should be installed and a pressure gauge should be installed on the water inlet pipe

If the inlet pressure is lower than 0.2MPa, install a pipeline pump

The salt should be higher than the level of the salt liquid, and the iodine and calcium salts should not be used as regenerants

Total pressure loss (pipe, controller, and water distributor) : 0.5kg/cm2

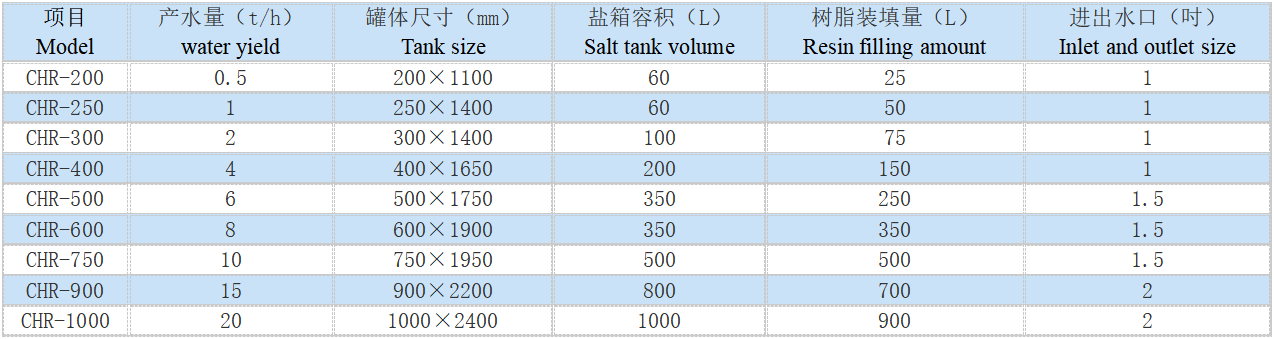

Ⅱ, the main specification series parameters

Note: In the project, the water treatment capacity should be calculated according to the raw water quality, the height of the exchanger layer and the regeneration cycle.

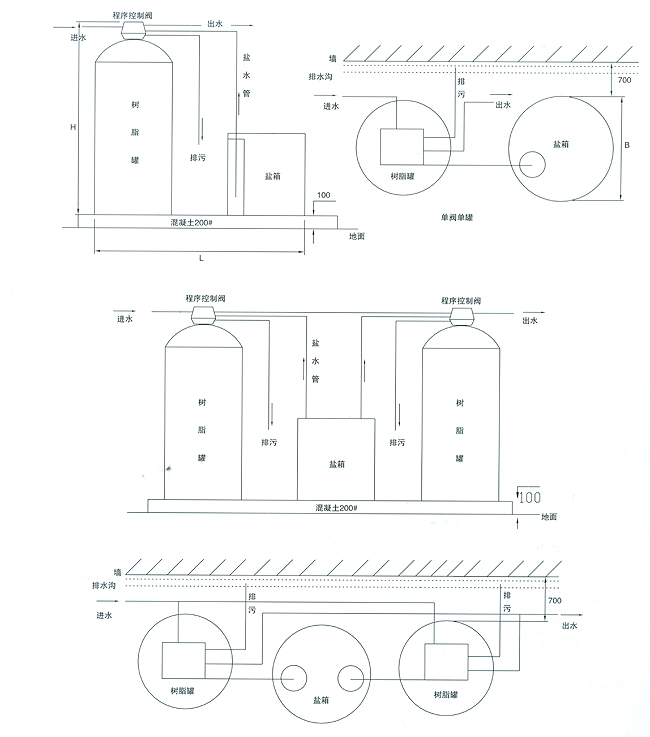

Ⅲ,Equipment installation diagram

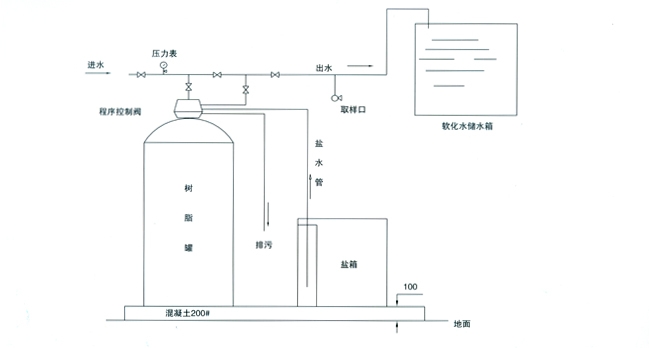

Ⅳ,Equipment system flow chart

Ⅴ,technical requirements

1, the equipment according to GB/T18300-2008 "Automatic control sodium ion exchanger technology regulator" manufacturing acceptance;

2, effluent water quality according to GB1576-2001 "Industrial boiler Water quality" acceptance;

3, the equipment inlet pressure: > 0.2MPa≤0.50MPa, influent turbidity is not greater than 3NUT, raw water hardness ≤8mmol/L, residual hard water ≤0.03mmol/L;

4, the inlet and outlet water pipe valve and support of the equipment are handled by the user;

5, do not need a separate equipment foundation, generally smooth cement floor can;

6. UPVC pipe fittings are recommended to connect the inlet and outlet water pipe valves.

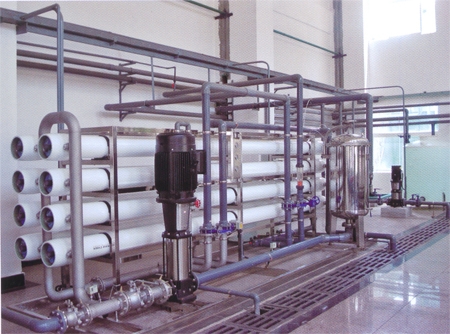

RO Reverse osmosis device

Product description

Reverse Osmosis (RO) is a pressure-driven technology that separates the solute and the capacitant in the solution through a selective membrane, which can effectively remove dissolved salts, colloids, bacteria and organic matter from the water. Is a widely used pure water production process, with a high degree of automation, low energy consumption, no pollution, small footprint, water quality and stability (water quality to adapt to a large range) and strong organization and other advantages, widely used in electronics, pharmaceutical medicine, food and beverage, chemical industry, drinking pure water, boiler supply water, seawater desalination, material recycling and environmental protection industries. The combination of the CHRO system reverse osmosis device and ion exchange equipment (double bed and mixed bed) can produce better quality pure water, and the terminal outlet water conductivity can reach 0.05µs/cm(25℃).

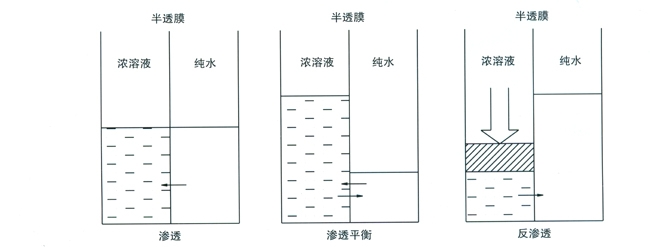

First, the working principle

A selective membrane that allows one or more components of a solution to pass through while others do not is called a semi-permeable membrane. When the pure solvent and the solution (or the solution of different concentrations) are separated by a semi-permeable membrane, the pure solvent has a spontaneous flow through the membrane to the solution phase (or from a low concentration solution to a high concentration solution), this phenomenon is called osmosis. If an external pressure is applied to one side (or to the concentrated solution side) to impede the flow of the solvent, the rate of penetration will decrease when the pressure is applied to stop the penetration completely. The tendency of penetration is balanced by the applied pressure. This equilibrium pressure is called osmotic pressure. Osmotic pressure is a property of the solution, independent of the membrane. If the pressure on the solution side is further increased, the solvent reverse osmosis flow is caused, this phenomenon is conventionally called "reverse (reverse) osmosis". In short, Reverse Osmosis (RO) is a pressure-driven technology that separates the solute from the capacitor in a solution by selectively passing through a membrane.

Second, equipment performance

CHRO system reverse osmosis device from the design and material selection and other aspects of strict control, product performance has reached the level of similar foreign products, technical performance in the country.

1, reverse osmosis membrane (RO membrane) from the United States (Hyde, Dow, etc.) introduced, and strictly abide by the membrane manufacturers related membrane system design guidelines, good water quality and long service life.

2, high pressure pump selection of well-known brand multi-stage centrifugal pump, with stable operation, low noise, high efficiency and long service life characteristics, automatic control pump start and stop and low pressure switch protection to ensure that the pump will not be damaged because of water supply stop.

3. The electrical components are selected from well-known manufacturers to ensure the continuous and stable operation of the entire device.

4, the perfect pre-treatment system is equipped with a precision filter to protect the high pressure pump and RO film from external damage.

5, the production of water and concentrated water set flowmeters to monitor and adjust the operation of the water production and system recovery, in the end of the water set up online conductance or resistance meter continuous monitoring of product water quality.

6, automatic regular cleaning system regularly clean the RO film, slow down the speed of film pollution and extend the service life of the film, in the water inlet and drainage measurement set pressure gauge to continuously monitor the pressure difference of each section, indicating the appropriate need for forced cleaning.

Third, water quality requirements

Pollution index: SDI≤4 Chemical oxygen consumption (as O2) : ≤1.5mg/L Total iron: ≤0.1mg/L

PH value: 3-11 Turbidity: ≤1NTU Water temperature: 5-40℃

Insoluble salt ions: concentrated water does not precipitate hazardous ingredients (oils, surfactants and detergents, etc.) : shall not be detected

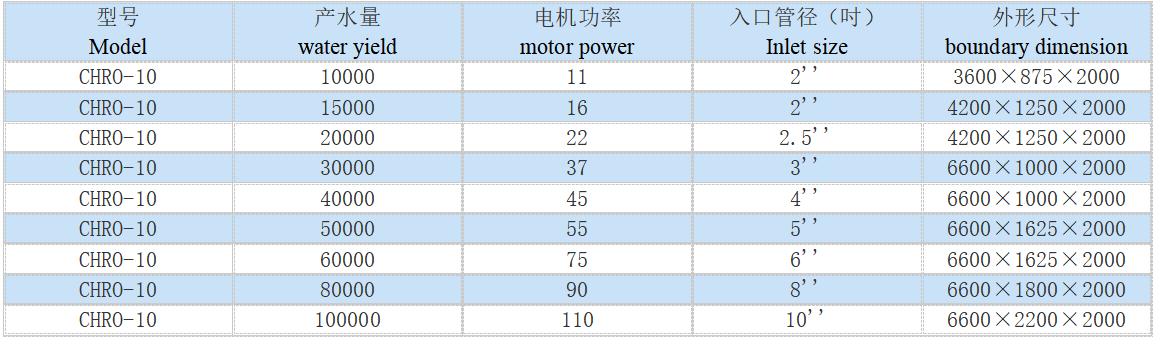

Fourth, reverse osmosis device specifications and performance table

Note: The first stage reverse osmosis device is shown in the table, and the second stage reverse osmosis device is optimized according to the actual situation.

Five,Ordering precautions

1. This product description is only a routine introduction to the reverse osmosis device. When selecting the equipment, the technical personnel can choose the technically and economically good treatment process plan after comprehensive comparison according to the raw water quality and terminal effluent water quality requirements of the specific project and the layout of the site.

2. Before selecting the equipment, the user shall provide detailed raw water quality analysis data and relevant conditions, not less than the following data:

(1) treated water quantity (2) Effluent water quality requirements (3) Raw water quality (river water, groundwater, reservoir water, etc.) (4) turbidity, chemical oxygen consumption

(5) Total dissolved solids (ppm) (6) Cation content (ppm) : Ca2+, Mg2+, Fe2+, Fe3+, Mn2+, Na+, etc. (7) Anion content (ppm) : CI-, SO42-, HCO3-, CO32--, etc. (8) conductivity (μs /cm) (9) PH value

3. We will provide you with a full set of detailed engineering data: process flow chart, floor plan, basic condition diagram and equipment operation and maintenance manual, installation and commissioning of a full set of equipment and personnel training, equipment after-sales service and long-term spare parts supply.
