Steam accumulator

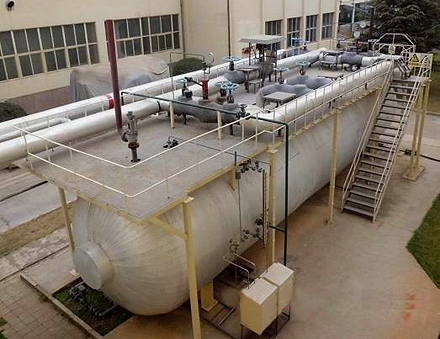

Heat accumulator (gas storage device) is a kind of energy-saving equipment to balance the fluctuation of enterprise steam load, and it is also a key energy-saving equipment to promote. It can double or several times increase the emergency peak of the instant steam supply capacity of the existing gas supply system, and also keep the pressure of the steam supply system within the specified range. It is not only the energy storage of the steam supply system in the amplifier, but also the pressure regulator of the steam supply system. It is widely used in petrochemical, chemical, papermaking, tobacco, wine, food, metallurgy, hospital and other industries. In particular, it has special adaptability to users with intermittent steam supply and users with excessive steam load fluctuation.
The bad effect of industrial boiler when the steam load fluctuates
1. The steam pressure fluctuation is large, and there is water in the steam when it is serious;
2. The boiler effect is reduced;
3. The labor intensity of the fireman increases;
4. Auxiliary power consumption increases;
5. It may be necessary to run more than one boiler when using steam for a short period of time, and to press fire or stop operation after the peak.
Device characteristics
1. Technical, safe and efficient;
2. Effectively solve the contradiction between the use of steam in enterprises. When the steam produced by the boiler exceeds the required amount of production, the heat accumulator will automatically store the excess steam in the form of saturated water. On the contrary, when the amount of gas used for production, the heat accumulator immediately releases steam to automatically supplement the amount of gas used for production. It not only uses steam for production, but also does not add new boilers, which plays a role in energy storage and energy saving.
3, the boiler under stable load balanced operation and high thermal efficiency, reduce the labor intensity of the operator.
4, the product section control and adjustment unit, can be supplied in complete sets. The use of steam accumulators in the power system or cogeneration system can more effectively balance the energy supply demand, generally improve the efficiency of the system or boiler by about 3%, can contribute to the boiler fuel saving 5-15% and reduce the boiler smoke blackness and nitrogen and oxygen cargo by more than half.
5, the heat accumulator maintenance work is very little, do not need full-time duty personnel.
In particular, the following four situations apply:
1. Applied to heating system with large fluctuation of steam load;
2, used in instantaneous gas consumption of large heating system;
3, used in the steam source intermittent steam supply or flow heating system;
4, used in the need to store steam for any time needed occasions.
5, energy saving, environmental protection effect is obvious, generally can contribute to the boiler fuel saving 5~15% and reduce the boiler emission of smoke blackness and nitrogen oxides more than half.

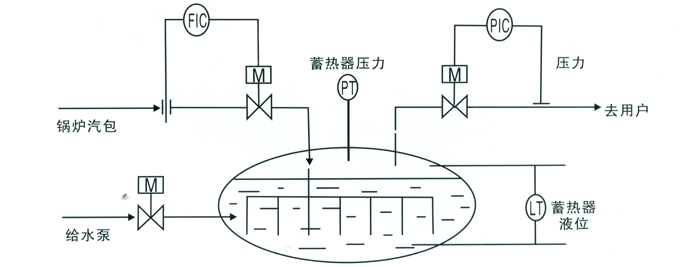

schematic diagram
When the steam accumulator works, it is filled with less than 90% saturated hot water, and the steam space above the water surface is equipped with a flushing device. The steam accumulator is generally installed between the boiler and the gas equipment, the balance between the steam equipment, the balance of the steam equipment load is reduced, and the excess steam produced by the boiler is stored in the steam; When the load of the steam equipment increases beyond the steam supply of the boiler, the heat accumulator releases heat to supplement the insufficient steam supply of the boiler and meet the steam for the equipment.
Heat accumulator structure

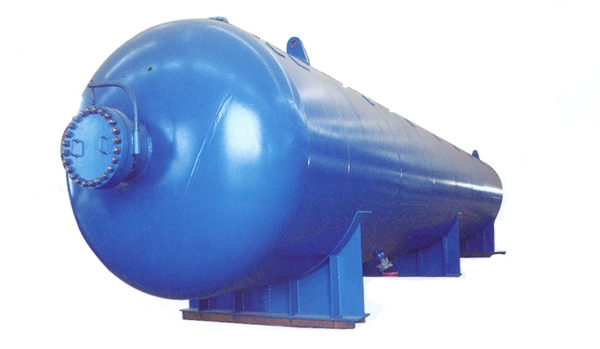

The steam accumulator is a horizontal pressure vessel, which is composed of a heat accumulator shell, an internal supplement, a heat release device (composed of a steam distribution tube and a number of nozzles, each group of nozzles has a circulation cylinder and a group of nozzles), a fixed support and an active support, a water level gauge, a pressure gauge, a safety valve, a thermometer and other safety accessories and an external thermal insulation layer. The vessel is provided with a nozzle for steam inlet and outlet, water inlet, water discharge, sewage discharge and gas discharge.
Main technical parameters
Impulse pressure (saturated steam or superheated steam)
Heat release pressure: (saturated steam or slightly superheated steam)
Volume: 6-130m³ (130m³ or more customized design according to customer requirements)
Thermal efficiency: ≥97%
Steam dryness: ≥98%
Steam pressure fluctuation: ≤0.02Mpa
Energy saving: generally can save 5%-10%
Body heat loss: < 4%

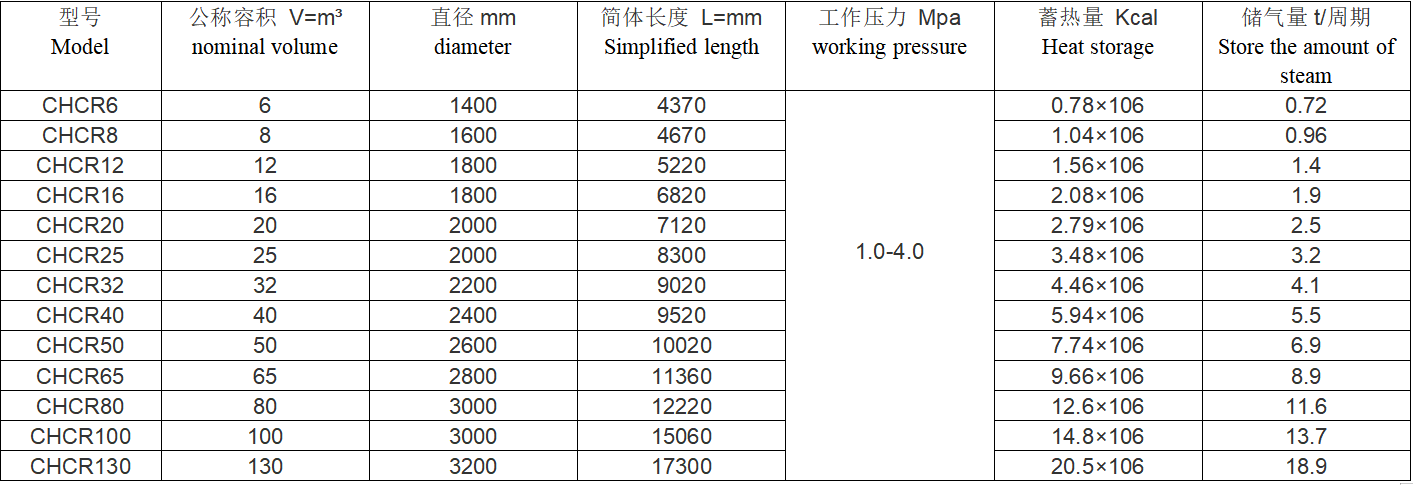

List of common heat accumulator devices
Order instructions
Generally, the model and the number of units can be selected according to the user's unit steam boiler installed capacity, rated working pressure and the system's instantaneous gas consumption, steam pressure and other equilibrium conditions; Qualified units according to the 24-hour steam load curve chart and thermal balance calculation to determine the selection.
