Product description

CHRY's new series of high-efficiency thermal deaerators are used for all kinds of industrial boilers above 2T/H. When the oxygen content of the outlet water of the deaerator fluctuates within the range of 30%-130% of the load, it is less than the national standard (≤0.1mg/L). The series of products have spray type, rotary film type, headless deaeration (integrated) can be divided into high and low arrangement (low installation users indicate when ordering, saving infrastructure investment). Steam, liquid level and temperature regulation are automatically controlled.

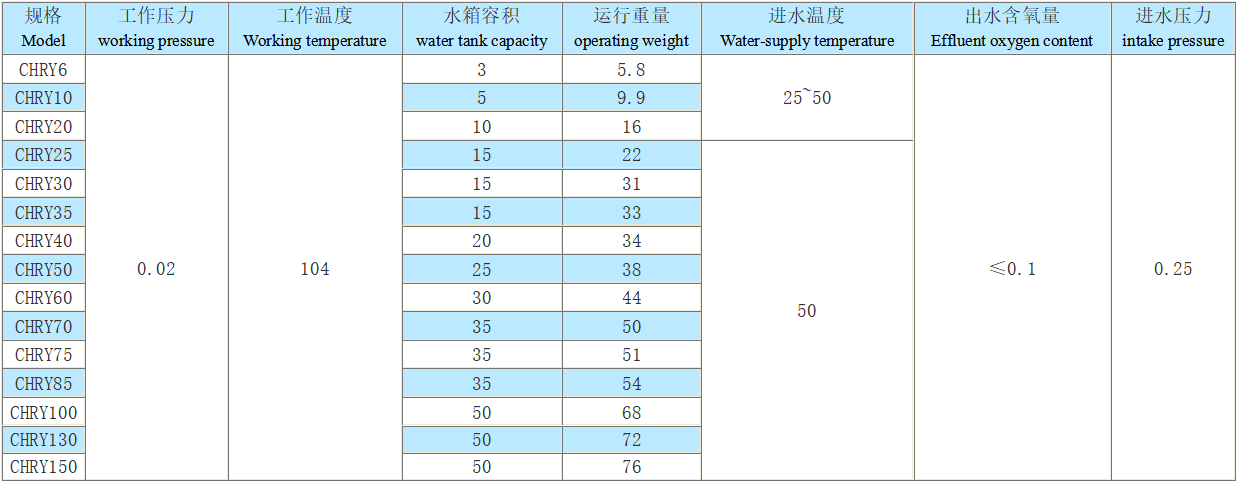

Main technical parameters table

Instructions:

1, the deaerator is usually arranged at a high level, and the installation height is generally more than 8 meters.

2. Our company can design and manufacture according to the requirements of users on the proportion of condensate water and production return water.

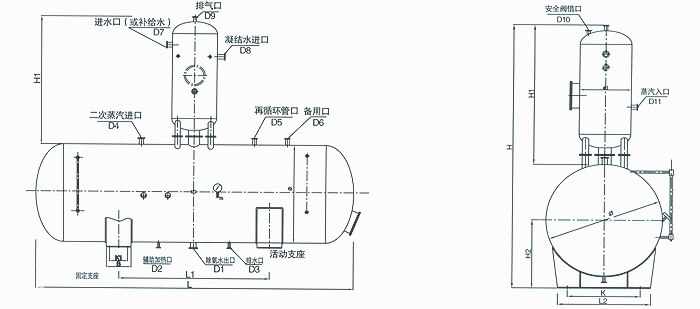

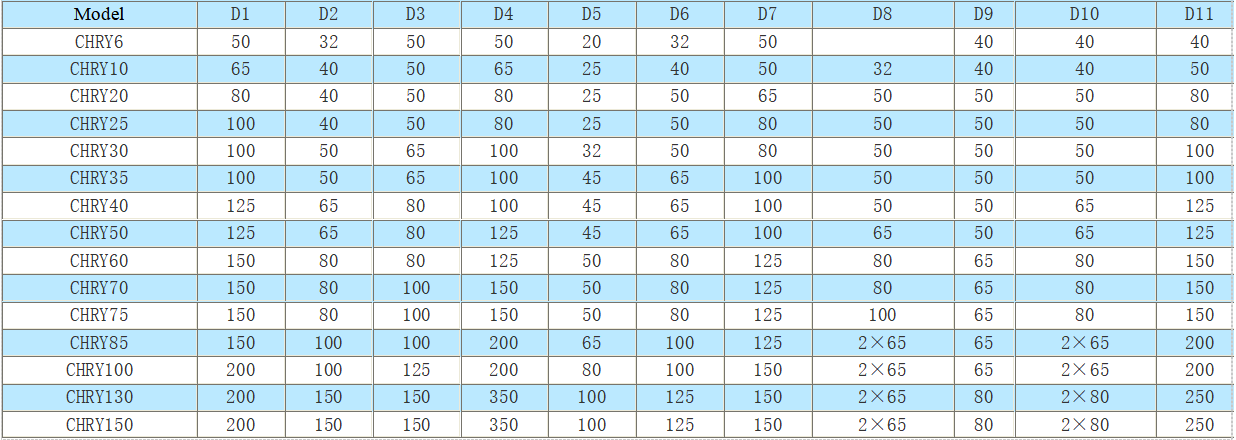

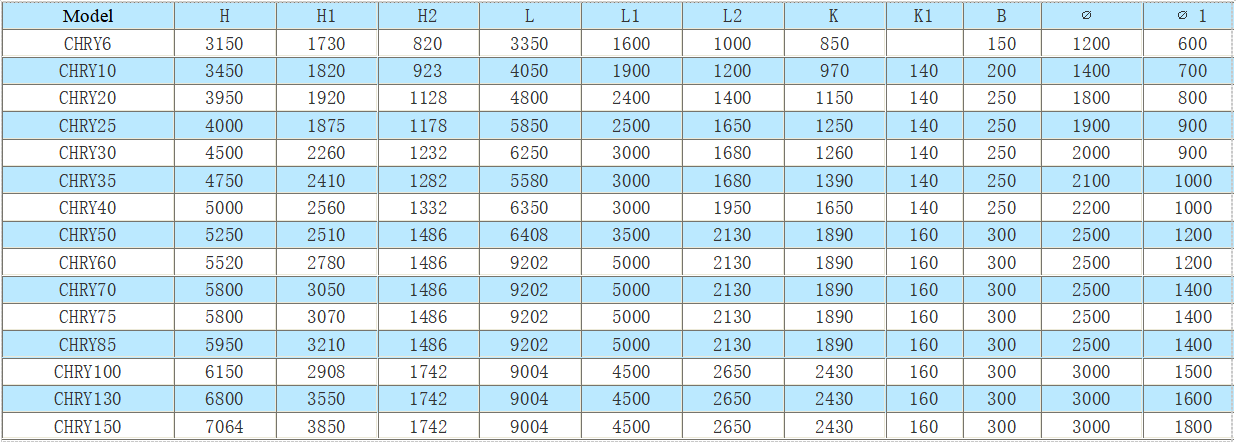

Deaerator specifications and dimensions table

Deaerator specifications and dimensions table

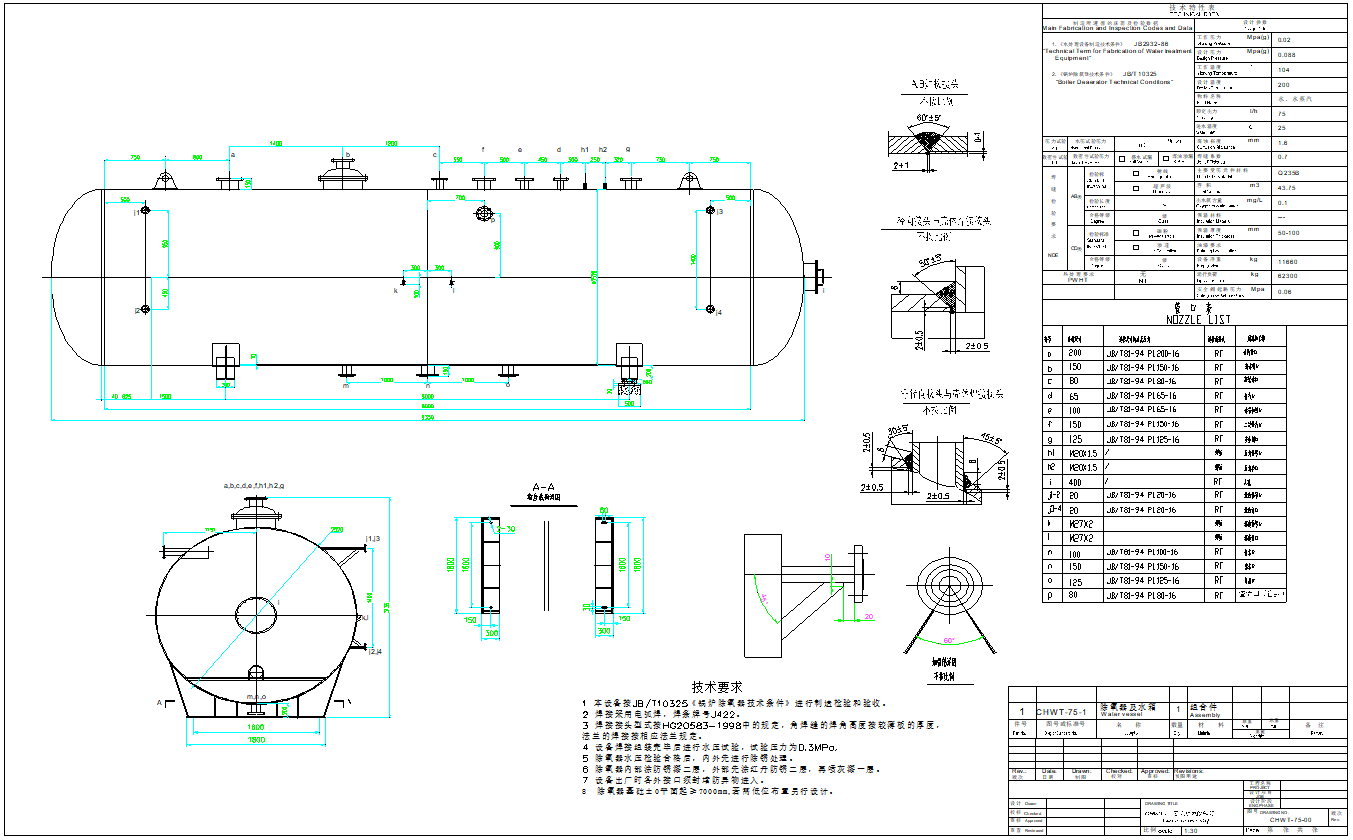

CHWT-75

CHWT-75
