Oil/gas organic heat carrier boiler is a well-known brand in China, Jiangsu Province products. Adopt new combustion, energy saving and environmental protection technology. Products are divided into YYW (horizontal)/YYL (vertical) series.

Ⅰ,Applicable fuels:

natural gas, LNG (liquefied natural gas), CNG (compressed natural gas), light oil, city gas, heavy oil, biogas and other gas fuels (can be designed according to the type of fuel provided by customers).

Ⅱ, structural characteristics:

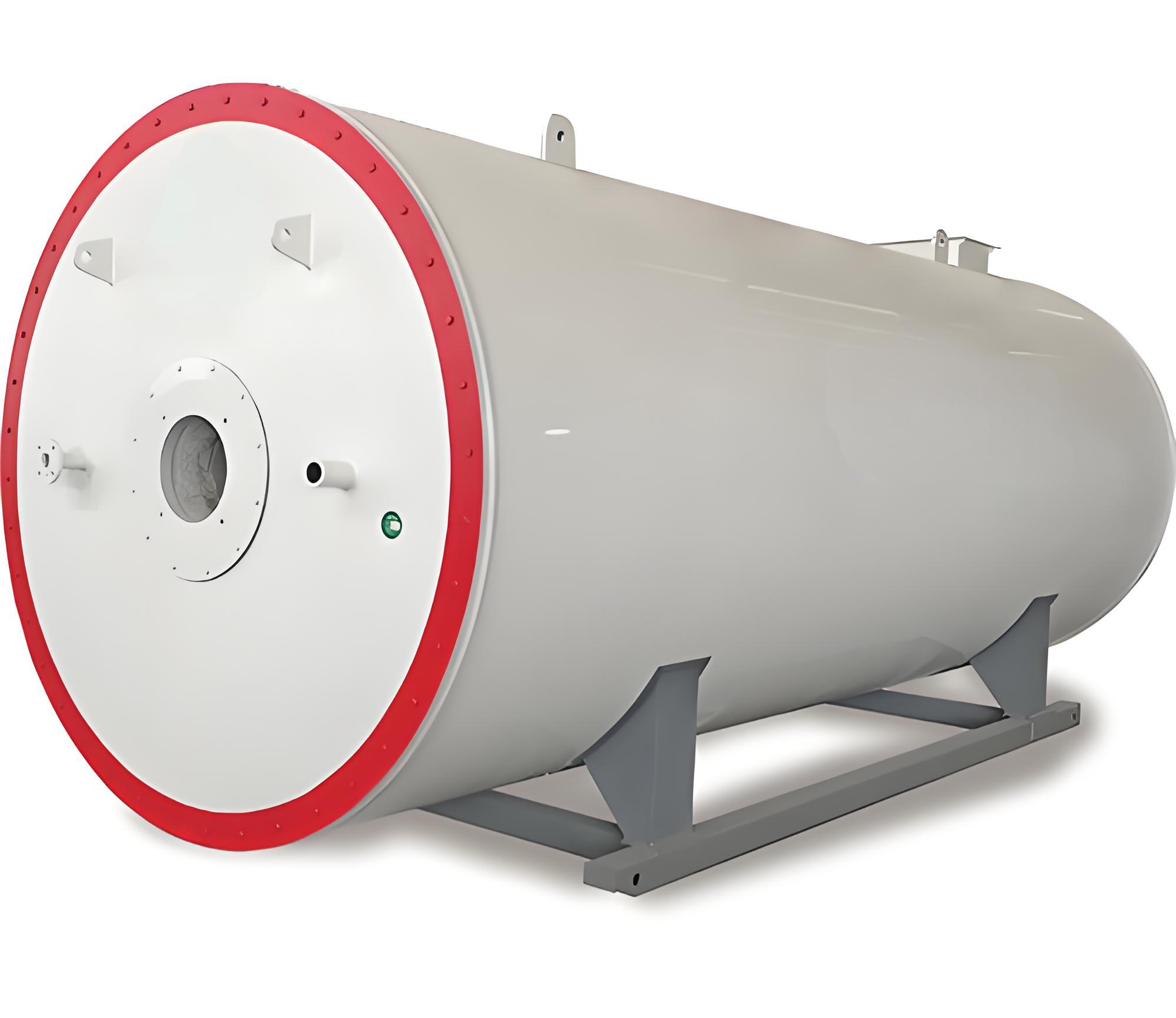

1, "Tin energy" brand oil steam organic heat carrier boiler (thermal oil boiler) is divided into YYL (vertical), YYW (horizontal) two structural types.

2, the boiler heat exchange surface adopts spiral close coil structure, the flue gas three return structure, the space heat exchange intensity optimization, strengthen the convection exchange.

3, double or multi-layer spiral close row coil composed of heating surface. The inner coil is the combustion radiation heat exchange surface, and the gap between the inner coil and the middle coil or the outer coil constitutes the hot gas convection heat exchange surface.

4, the boiler tail arranged air heat exchanger or water/steam heat exchanger for waste heat absorption, heating area is sufficient, reduce the boiler exhaust temperature, improve the boiler thermal efficiency.

5, boiler quick door or check manhole structure design, easy to internal inspection and maintenance.

6, the boiler uses high-quality refractory materials and insulation materials, high heat resistance, good insulation effect, reduce heat loss, improve thermal efficiency.

7, the boiler heat exchange structure is matched with the burner, the use of comprehensive low nitrogen oxide (NOx) control technology, including flue gas recirculation (FGR), to achieve high combustion efficiency, low pollutant emission, NOx discharge in line with the environmental protection emission requirements of the boiler.

Ⅲ, performance advantages:

1, the boiler adopts the disc tube multi-return heat exchange structure, the heating surface is sufficient, and the output thermal efficiency is high.

2, boiler heat exchange surface tube adopts automatic argon arc welding, automatic real-time Xlif line online 100% detection, welding quality is stable and reliable.

3, the boiler adopts the whole or quick installation structure, complete supporting, convenient installation period is short.

4, the burner imported from abroad well-known brands, after-sales guarantee, safe and reliable.

5, supporting auxiliary machines, electrical appliances, instruments using domestic well-known brands.

6, the boiler adopts mechatronics full automatic control technology, can achieve full automatic control. With automatic temperature regulation, automatic ignition, and differential pressure, overtemperature, flameout, leak detection, fan, oil pump overload and other multiple interlock protection functions. Remote human-computer interaction and data sharing can be achieved through mobile Internet.

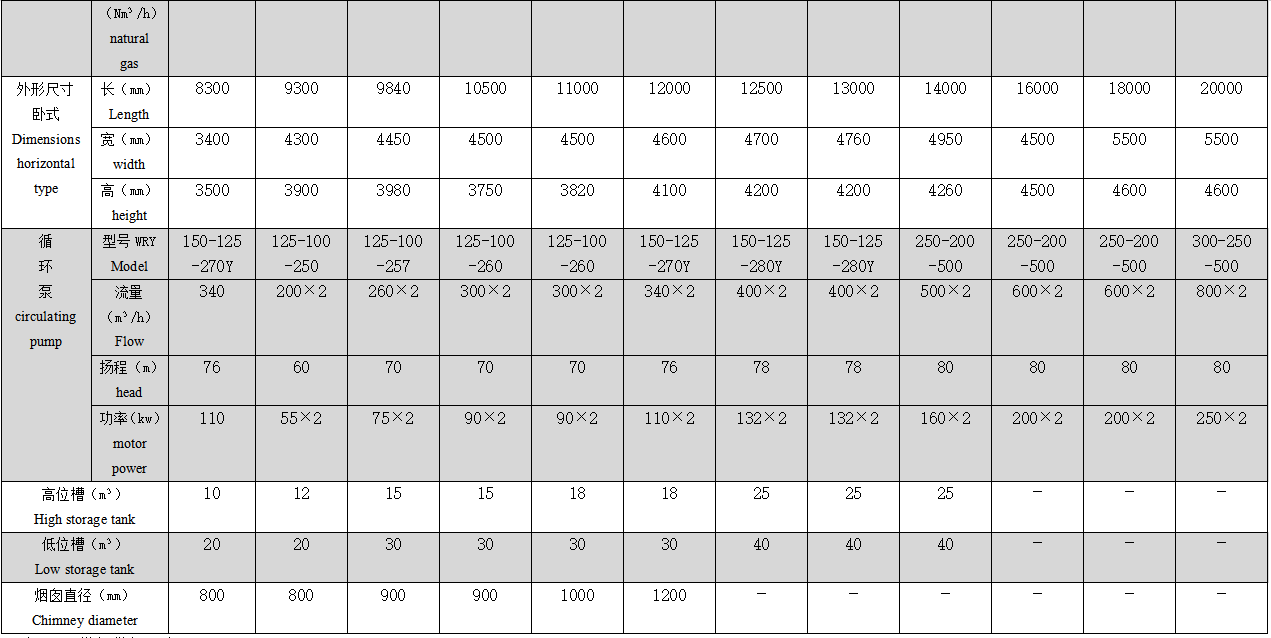

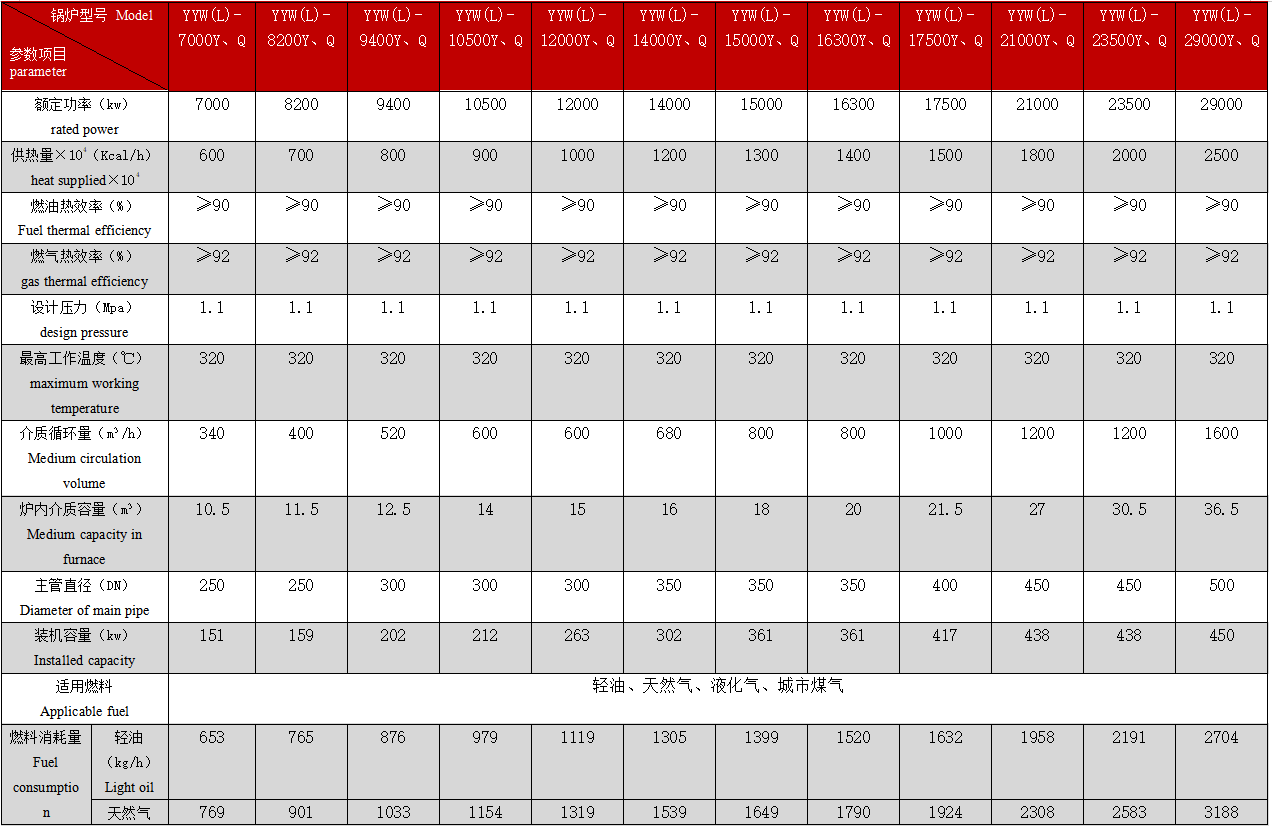

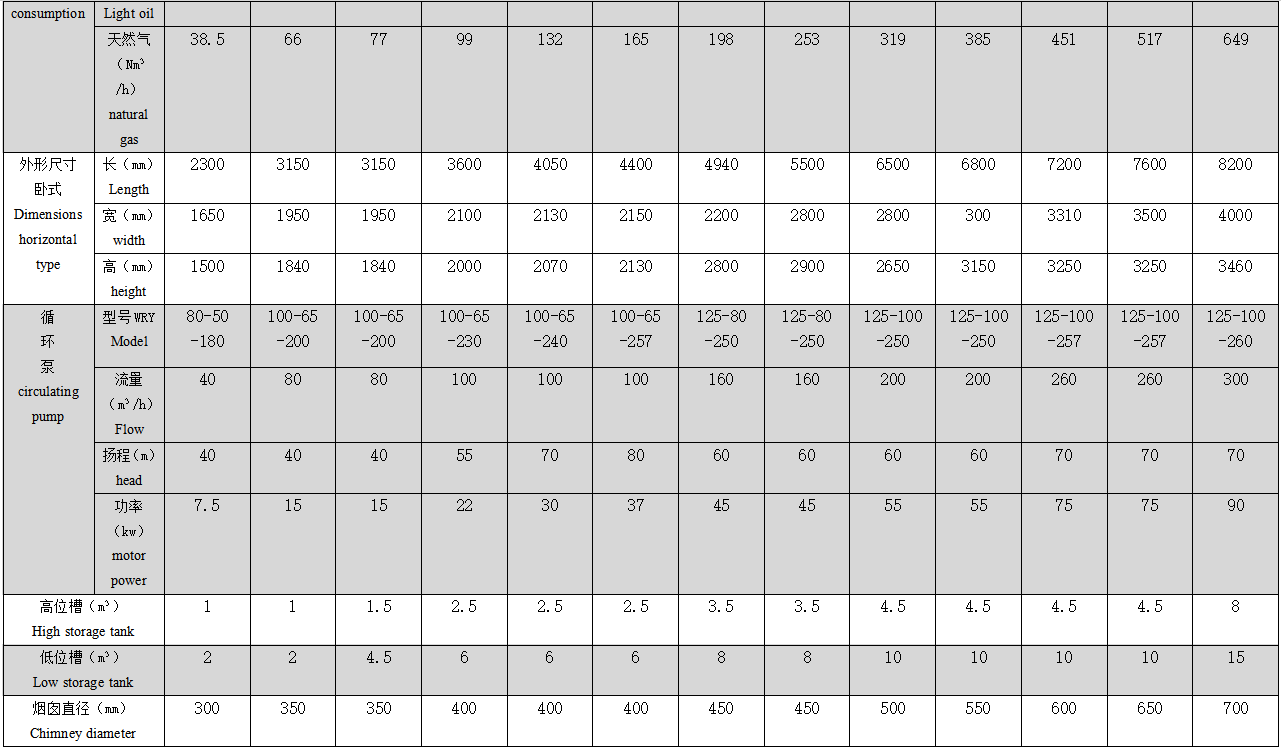

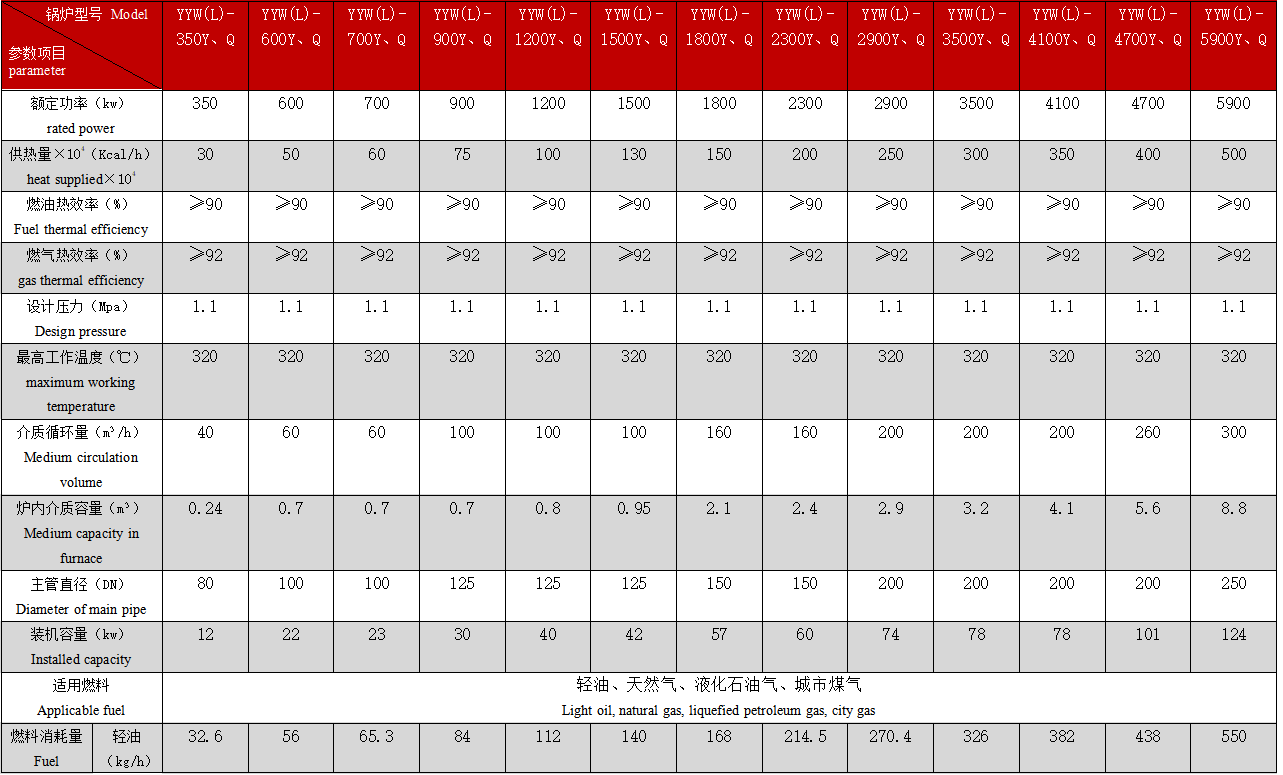

Ⅳ. Product range

1, Product model: YYW (horizontal)/YYL (vertical) fuel gas organic heat carrier boiler

2, rated thermal power: 350KW-29000KW/h (300,000 kcal/hour -25 million kcal/hour)

3. Working pressure: 0.6-1.1MPa

4, other: according to the user's various parameter requirements specially designed and manufactured, to provide products to meet customer needs, tailored.
