Ⅰ, the working principle

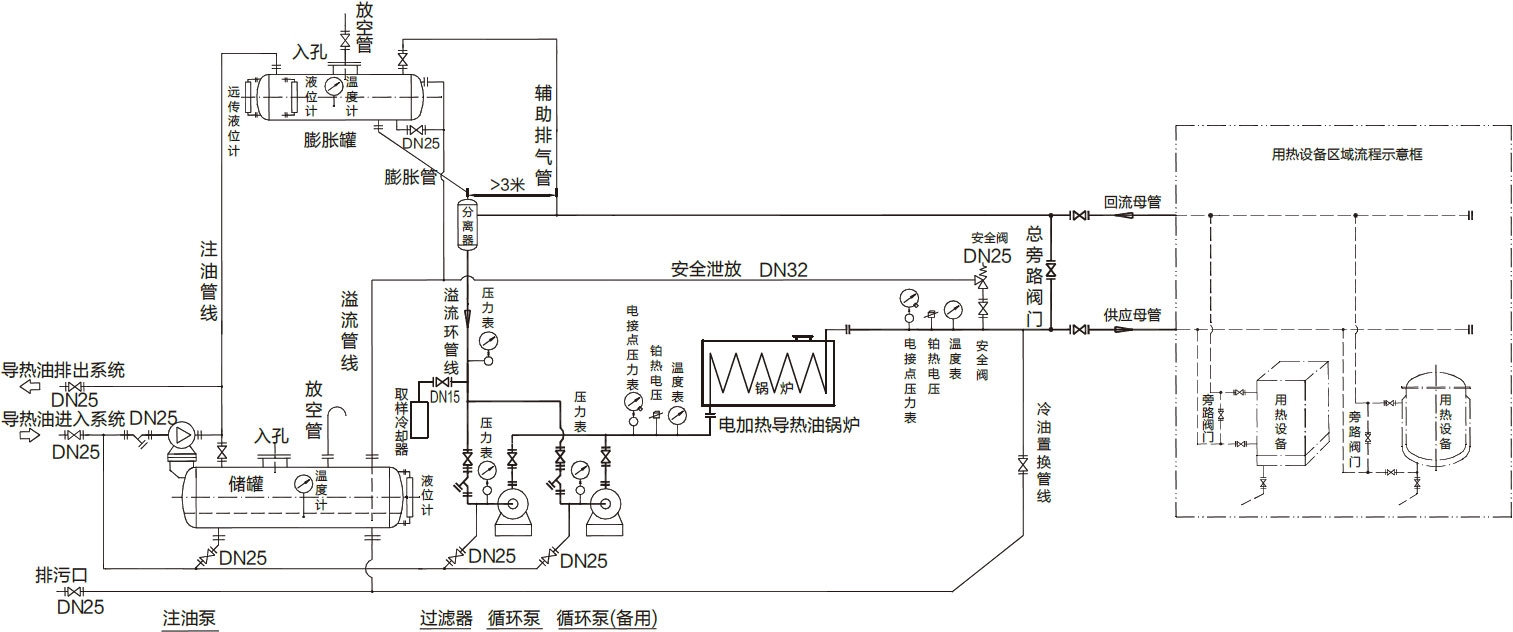

Heating heat conduction oil furnace is electricity as energy, the heating element is directly inserted into the organic carrier (heat conduction oil) direct heating, the use of high temperature circulation pump, forcing the high temperature heat conduction oil liquid phase circulation, the heat transfer to one or more heat equipment, after the use of heat equipment, re-through the circulation pump, back to the heater, then absorb heat, transfer to the heat equipment, so repeat, The continuous transfer of heat is realized, so that the temperature of the heated object is increased, and the heating process requirements are met.

Ⅱ, product advantages

1, with equipment operation control and safety monitoring device, temperature rise process automatic control, easy to operate, easy to install.

2, can be at a lower operating pressure (<0.5Mpa), to obtain a higher operating temperature (≤320℃), when the oil temperature at 300℃, the operating pressure is only one tenth of the saturated steam pressure of water, thermal efficiency can be as high as 95% or more.

3, can be stable heating and temperature adjustment, temperature control accuracy up to ±1℃. No steam boiler running, bubbling, dripping, leakage and other heat loss, heat utilization rate of 95%, energy saving about 50%.

4, the equipment is small in size, the installation is more flexible, should be installed near the heat equipment, do not need to lay the foundation, do not need to be on duty.

5, durable: according to the formal process of operation, the service life can reach more than ten years.

6, heating system heat transfer medium is an organic heat carrier - heat conduction oil, the medium tasteless, non-toxic, no environmental pollution, no corrosion to the equipment. Long service life, is a "low pressure and high temperature" type of energy-efficient heating equipment.

7, customizable: according to customer requirements design shape, a single power from 12KW ~ 1000KW can be selected.
